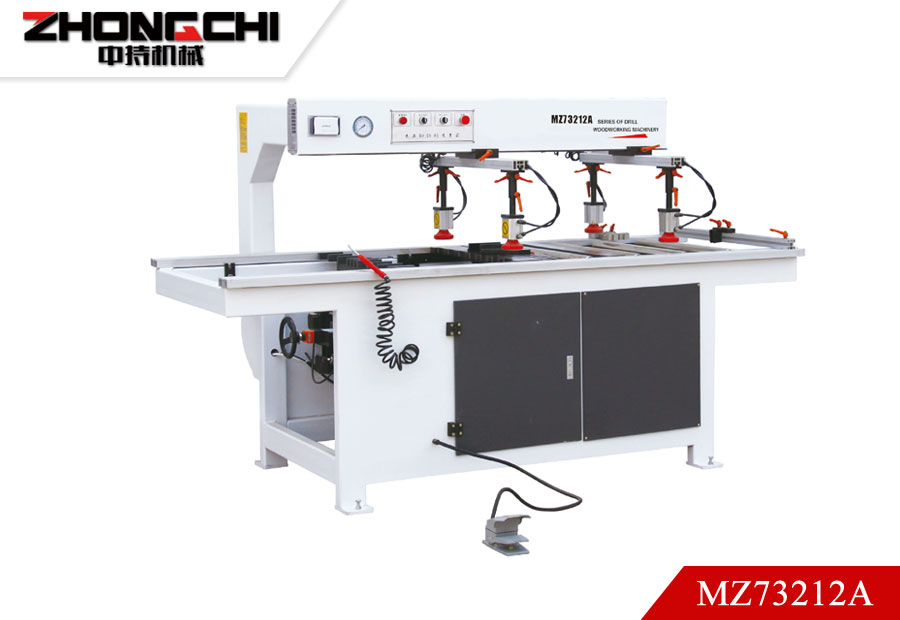

Product description：
Applicable products: drilling of wood board, fiberboard, particleboard, medium density board and other wood-based board.
Achieve results: large drilling range, drilling depth, distance positioning quickly and accurately.Equipped with size digital calculator, improve work efficiency.
Structure advantage: the machine body adopts double support, big measure design, enhance the stability of the machine.Fuselage parts are made of high quality steel, which will never deform after high temperature annealing (eliminating internal stress).
Imported original brand electrical components, touch screen control system, simple and stable operation, powerful function, low failure rate.
Technical Parameters
| Max.Drilling Diameter | 单孔φ35mm |
| Max.Drilling Depth | 60mm |
| Max.Processing Pitch | 330-1220mm |
| Total Number of Drilling Shafts | 21轴*2排 |
| Spindle Speed | 2800r/min |
| Total Power of Motor | 15kW*2 |
| Air Pressure | 0.6-0.8Mpa |
|
Installation Size |
2400x1080x1400mm |
| Weight | 550kg |
