Suitable for processing all kinds of MDF, particleboard, wood-based panels ASB panels, PVC panels, plexiglass panels, etc
Equipped with PLC intelligent control system, which automatically switches to the stop heat insulation condition when the electric heating automation degree is high, and reduces the heating waiting time and the carbonization of glue.

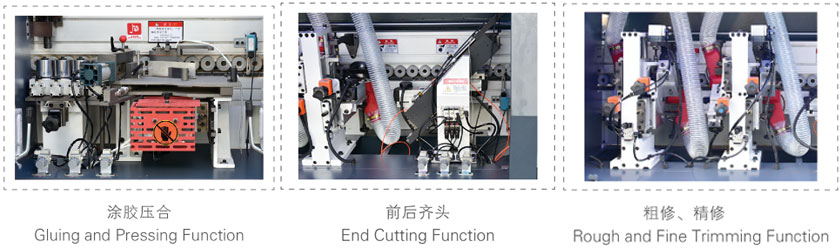

Equipped with pre - milling cutter, double slotting function and automatic pressing function are added to make sealing edge adhesion stronger and more beautiful.

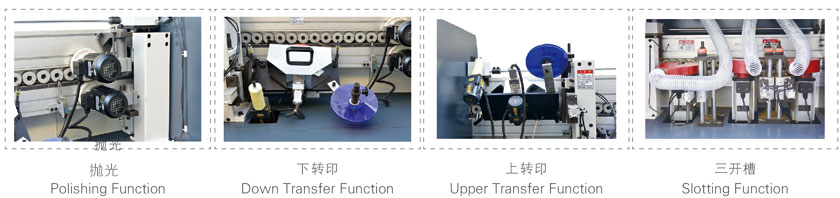

Equipped with upper and lower stamping function products once formed.
It is easy to adjust when the plate thickness changes.
Technical Parameters
| Working thickness | 10-60mm |
| Min. working width | ≥60mm |
| Min. panel length | ≥160mm |
| Feeding speed | 18-24m/min |
| Ironing wheel diameter | 200mm |
| Angle adjustment range | 90° |
| Slotting power | 4kw*3 |
| Air pressure | 3.7kw |
| Feeding motor | 30.5KW |
| Voltage | 380v,50hz, 3phase |
| Weight | 3200kg |
| Overall size | 7200*900*1600mm |
